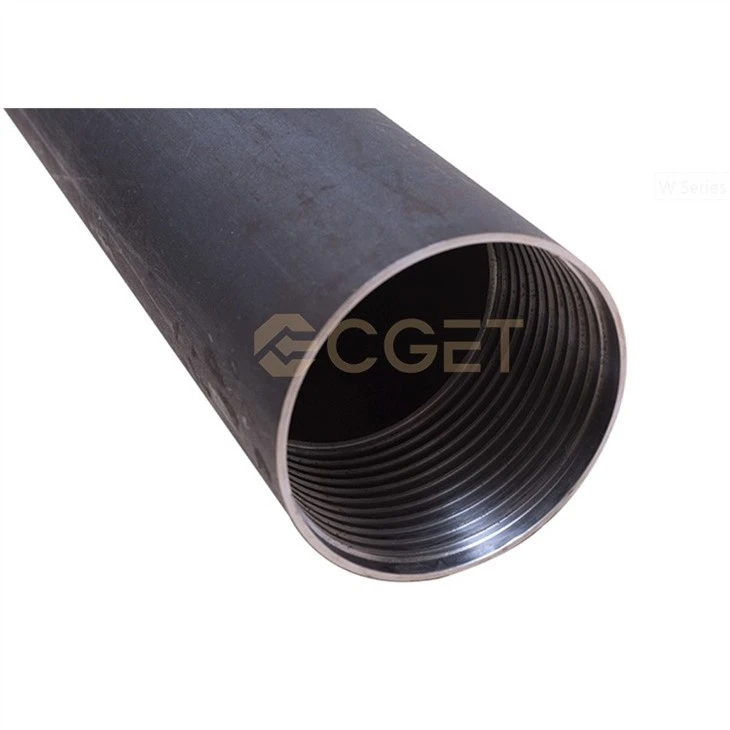

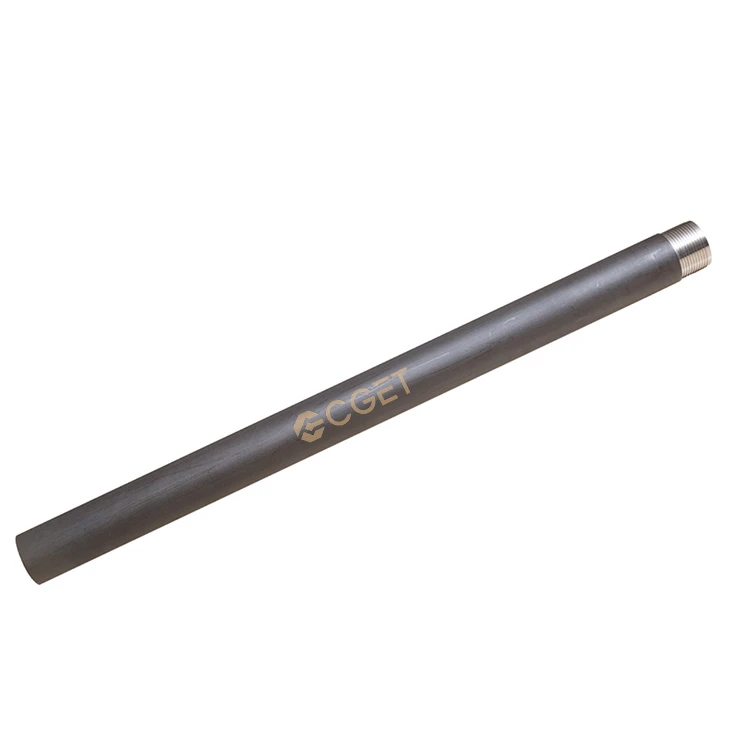

Casing Pipe BW NW HW PW
Casing Pipe BW NW HW PW
Casing Pipe BW NW HW PW
Casing Pipe BW NW HW PW
Casing Pipe BW NW HW PW
Casing Pipe BW NW HW PW

Casing Pipe BW NW HW PW

Aman Tiyo oswa Aman Tib (W Thread) jwe yon wòl trè enpòtan pandan perçage, li se konsepsyon yo pase fòmasyon yo anlèvman oswa fòmasyon an bezwen sèvi ak aman pou perçage, pou asire w ke pèfòmans nan pi bon, nou itilize 4130 kòm materyèl la anvan tout koreksyon rekòmande. :
* BW aman 73mm, epesè: 6.35mm
* NW aman 88.9mm, epesè: 6.35mm
* HW aman 114.3mm, epesè: 6.35mm
* Aman PW 139.7mm, epesè: 6.35mm

Voye rechèch

Pwodwi Entwodiksyon

Aman Tiyo oswa Aman Tib (W Thread) jwe yon wòl trè enpòtan pandan perçage, li se konsepsyon yo pase fòmasyon yo anlèvman oswa fòmasyon an bezwen sèvi ak aman pou perçage, pou fè sur pèfòmans nan pi bon, nou itilize 4130 kòm materyèl la anvan tout koreksyon rekòmande. :

Gwosè ki disponib:

BW aman 73mm, epesè: 6.35mm
NW aman 88.9mm, epesè: 6.35mm
HW bwat 114.3mm, epesè: 6.35mm
PW bwat 139.7mm, epesè: 6.35mm

Tib
• Segondè bon jan kalite alyaj asye tib;
• Konsantrisite konsistan, dwat ak tretman chalè;
• Tout tib ki disponib nan gwosè DCDMA.

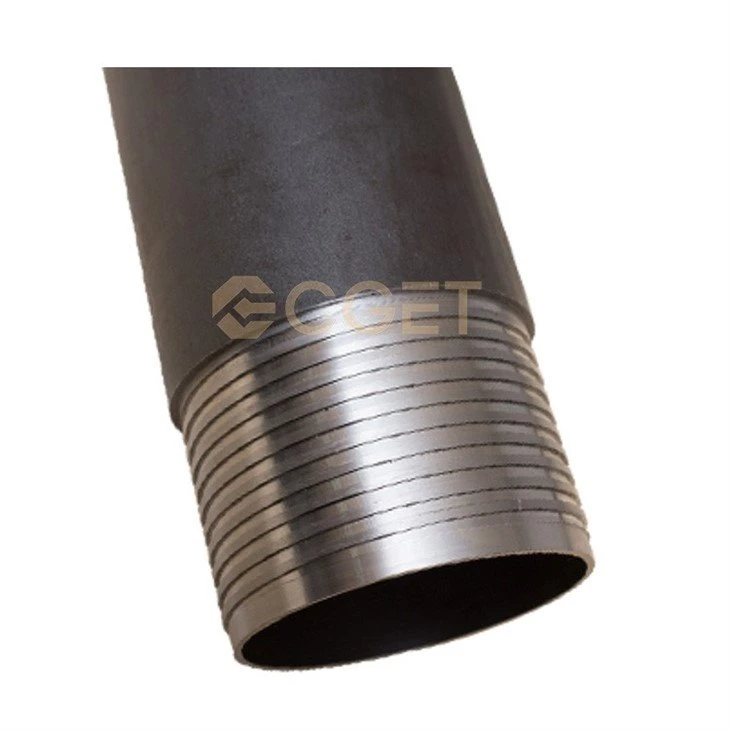

Fil
• Tapered, fil kou (3 fil pou chak pous) bay fasil fè ak kraze;
• Efikasite chaj 30 pousan bay ase fòs pou aplikasyon mwayèn.

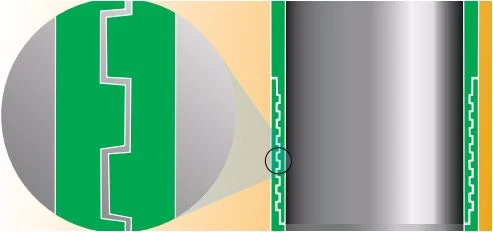

Tapered Course Threads of Casing Pipe

Deskripsyon	Kòd	OD (mm)	ID (mm)	Anplasman fil (mm)	Longè fil (mm)
BW-10'	20550201	￠73.00	￠60.30	6.35	63.5
BW-3M	20550202	￠73.00	￠60.30	6.35	63.5
BW-5'	20550203	￠73.00	￠60.30	6.35	63.5
BW-1.5M	20550204	￠73.00	￠60.30	6.35	63.5

NW-10'	20550301	￠88.90	￠76.20	6.35	69.85
NW-3M	20550302	￠88.90	￠76.20	6.35	69.85
NW-5'	20550303	￠88.90	￠76.20	6.35	69.85
NW-1.5M	20550304	￠88.90	￠76.20	6.35	69.85

HW-10'	20550401	￠114.30	￠101.60	6.35	76.2
HW-3M	20550402	￠114.30	￠101.60	6.35	76.2
HW-5'	20550403	￠114.30	￠101.60	6.35	76.2
HW-1.5M	20550404	￠114.30	￠101.60	6.35	76.2

PW-10'	20550501	￠139.70	￠127.00	6.35	82.55
PW-3M	20550502	￠139.70	￠127.00	6.35	82.55
PW-5'	20550503	￠139.70	￠127.00	6.35	82.55
PW-1.5M	20550504	￠139.70	￠127.00	6.35	82.55

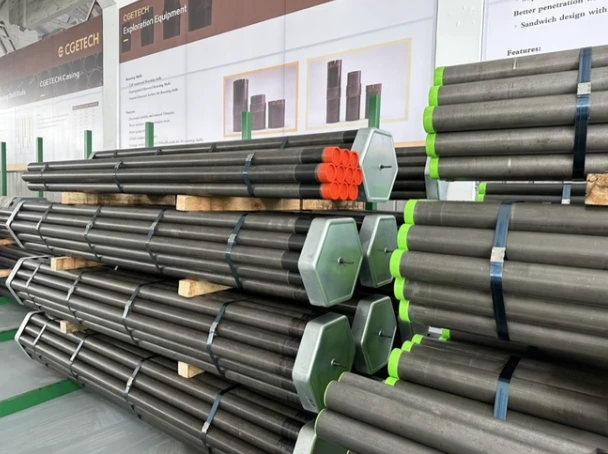

drill rod nq hq phd nt ht

Remak:

Pou asire w ke pèfòmans nan boîtier yo, pa janm melanje branch bwa nou yo ak nenpòt lòt boîtier manifakti a ansanm, tou li ka lakòz echèk machin ak aksidan katastwofik.
C80 klas materyèl bwit ki disponib pou chwazi tou.
WT aman (NWT, HWT ak PWT) ak pi gwo fil pi fon, 2.5 fil pou chak pous ki disponib tou.

WT Thread of Casing Pipe

WT gwosè fil

Deskripsyon	Kòd	OD (mm)	ID (mm)	Anplasman fil (mm)	Longè fil (mm)
HWT-3M	20500101	￠114.3	￠101.6	10.2	62.7
HWT-1.5M	20500102	￠114.3	￠101.6	10.2	62.7
NWT-3M	20500201	￠88.9	￠76.2	10.2	62.7
NWT-1.5M	20500202	￠88.9	￠76.2	10.2	62.7
PWT-3M	20500301	￠139.7	￠127.0	10.2	62.7
PWT-1.5M	20500302	￠139.7	￠127.0	10.2	62.7
